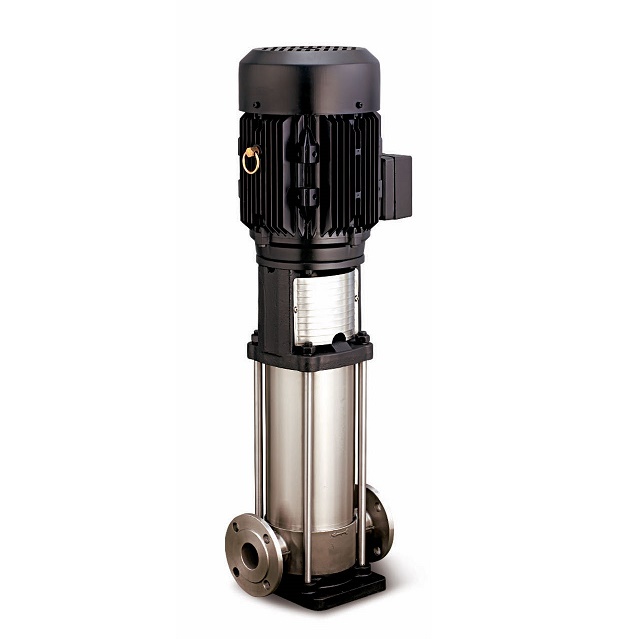

C.R.I vertical multi-stage centrifugal pumps (MV series) are non-self priming, axial suction and delivery type available with DIN standard port connections. All components like impellers, diffusers, shaft and pump base are made of corrosive resistant stainless steel suitable for drinking water and are designed to deliver the best possible hydraulic efficiency. Well-suited for integration in pressure booster units.
Main applications:
• Pressure boosting units
• Industrial water supply
• Fire-fighting systems
• Irrigation
• Reverse osmosis systems
• High pressure water supply
• Water treatment plants
• Boiler feeding
• Washing systems
• HVAC
• Mining
• Food processing industry
• Golf course
Technical Features:
• High operating efficiency
• SS parts for hygiene
• Good suction lift and operating pressure
• Dynamically balanced rotating parts
• Balanced and rigid construction
• Seal replacement can be done without removing pump from its position

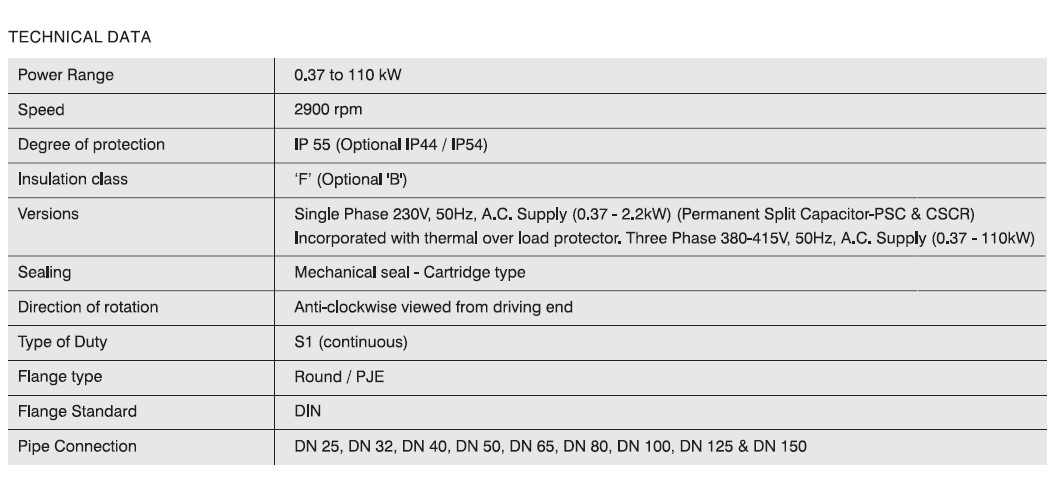

Technical specifications:

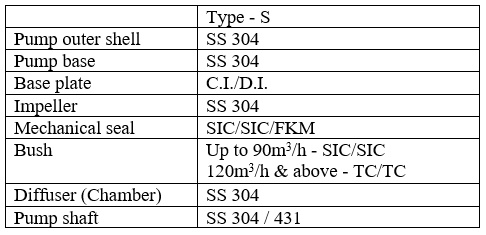

Materials of construction:

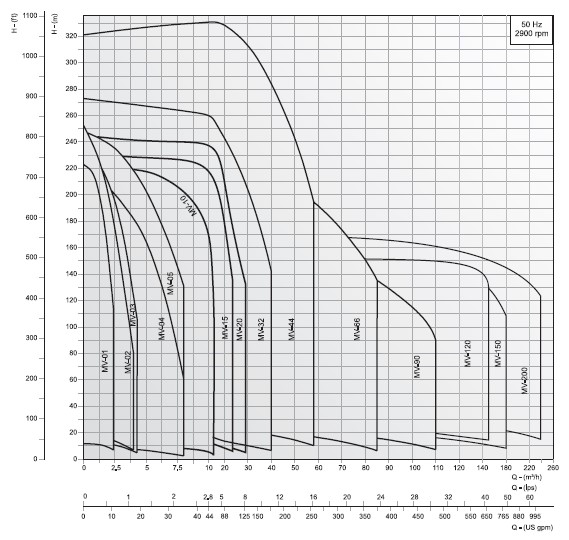

Performance Range:
• Maximum Flow: 200m3/H
• Maximum Head: 320m
Click here for CRI’s pump selector tool
