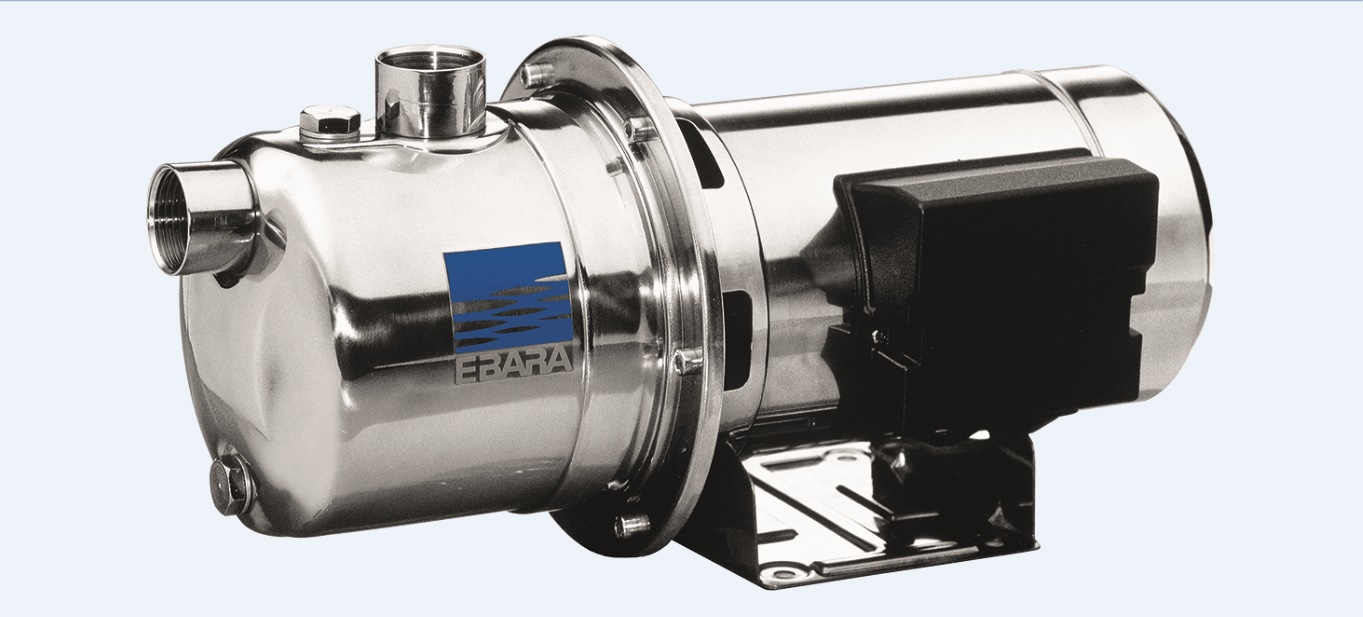

Self-priming electric pumps in AISI 304 stainless steel.
APPLICATIONS
• Supply of drinking water
• Domestic pressure boosting
• Small-scale garden irrigation
• Emptying reservoirs and swimming pools
• Pumping clean water in general
TECHNICAL DETAILS
• Practical
• Light and easy to transport
PUMP TECHNICAL DATA
• Maximum working pressure: 6 bar
• Maximum temperature of the liquid: 45°C
• Maximum suction depth: 8 m
• G1 suction connection for JES, G1¼ for JE
• G1 discharge connection
MATERIALS
• Pump body, motor bracket, seal housing disc, motor case and fan cover in AISI 304
• Shaft in AISI 303 (part in contact with the liquid)
• Impeller in AISI 304 for JE, in PPE + PS reinforced with fibreglass for JES
• Mechanical seal in Ceramic/Carbon/NBR

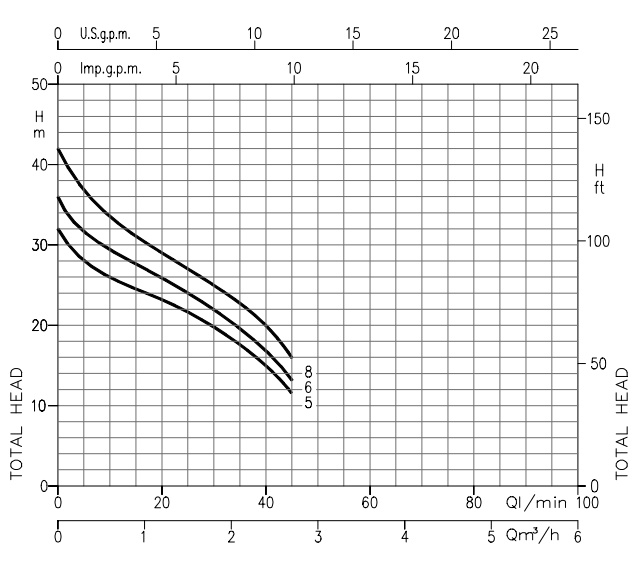

PERFORMANCE CURVES
Capacity: up to 4.5 m3/h
Head: up to 49m
