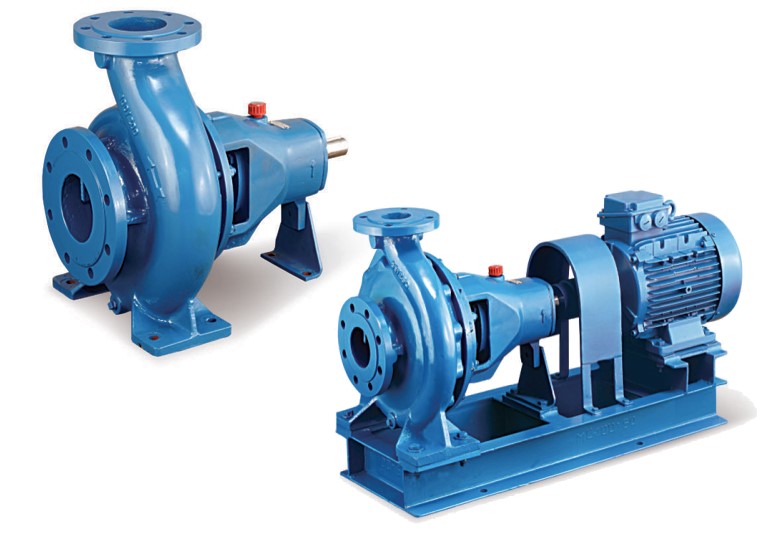

C.R.I. End suction pumps are single stage centrifugal, non-self priming,
volute pumps. These pumps feature horizontal shaft components with
axial suction and impellers and radial discharge ports. Pumps volute
chamber and impellers are carefully designed to give the best possible
end suction lift characteristics.
Main applications:
• Water supply
• Irrigation
• Pressure boosting
• Fire protection
• Heating and air conditioning systems
• General industrial services
• Water supply to swimming pools, fountains
Technical features:
• Back pull out design facilitates dismantling the pump without disconnecting the pump casing from the pipes
• Heavy duty bearing ensures long life
• Minimal shaft deflection maximizes lifetime of bearing and mechanical seal
• Dimensions and characteristics according to DIN 24255 standards
• Available both in mechanical seal and soft packed stuffing box design

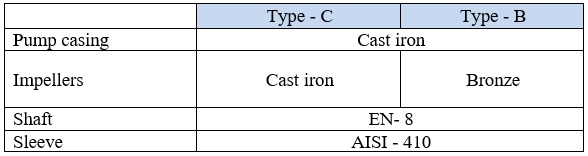

Materials of construction:

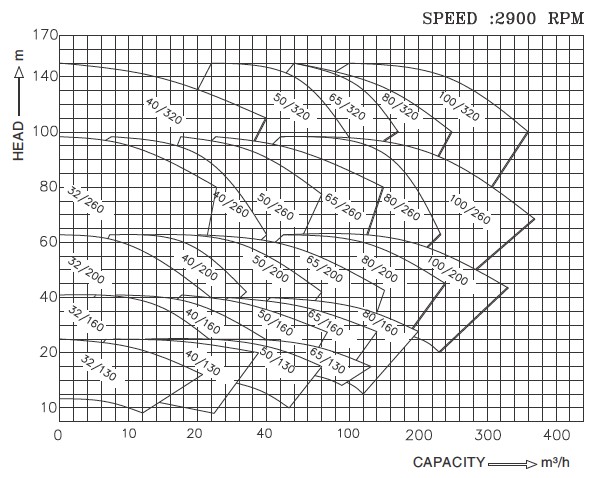

Performance Range:
Capacity: Up to 550 m3/h; Head: up to 100m
Click here for CRI’s pump selector tool
