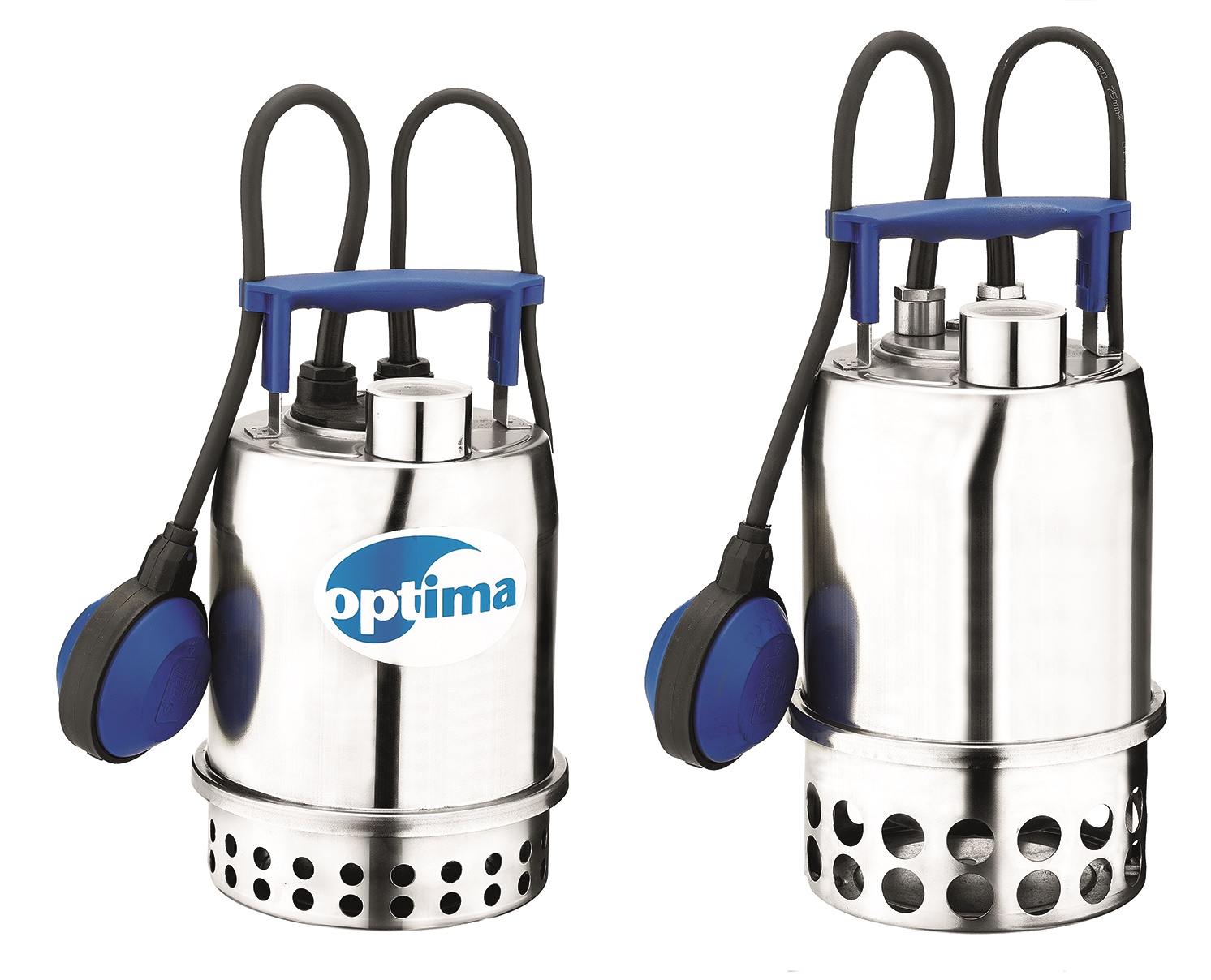

Submersible electric pumps for clear water with hydraulic equipment in AISI 304 stainless steel.
APPLICATIONS
• Draining wells, garages, cellars or other flooded enclosed areas
• Irrigation for gardens and vegetable gardens
• Handling infiltration water or drainage of unloaded water
TECHNICAL FEATURES
• Mechanical seal as standard supply
• Reliable, corrosion resistant
• Highly versatile
• Suited to fixed and mobile installations
• Equipped with 5 m power cable (H05 RN-F) for use indoors (10 m for outdoors applications), with/without float switch
TECHNICAL DATA
• Maximum submersion: 5 m
• Maximum fluid temperature: 50°C
• Maximum solid dimensions: 10 mm
• 2 pole asynchronous motor
• Insulation class F
• Protection rating IP68
• Single phase voltage 230V ±10% 50 Hz,
• Delivery connection G1¼
MATERIALS
• Pump body, suction grille, gasket disk and motor casing in AISI 304 stainless steel
• Impeller in PPE + PS reinforced with glass fibre
• Shaft made of AISI 303 stainless steel
• Standard mechanical seal (Carbon/ceramic/NBR)

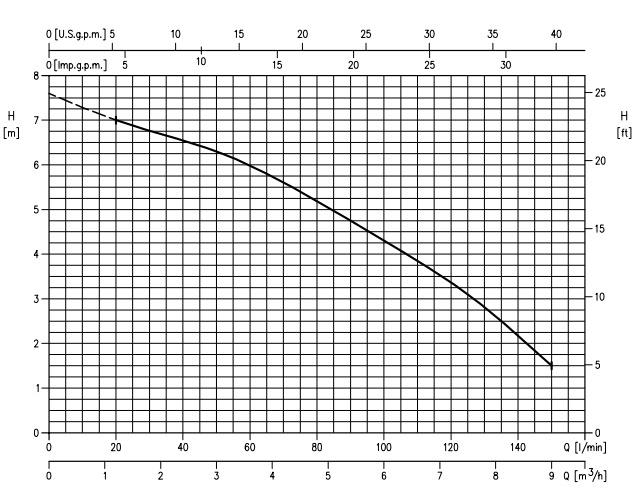

PERFORMANCE CURVE
Submersible electric pumps for clear water with hydraulic equipment in AISI 304 stainless steel.
APPLICATIONS
• Draining basements, garages, cellars or other flooded enclosed areas
• Supply for garden fountains
• Easy draining of tanks and reservoirs
TECHNICAL FEATURES
• Mechanical seal as standard supply
• New design and renewed styling
• Technologically and mechanically optimised
• Very versatile and suited to fixed and mobile installations
• Equipped with 5 m power cable, type H05 RN-F (single phase) H07 RN-F (three-phase) for use indoors (10 m for use outdoors), with/ without float switch
TECHNICAL DATA
• Maximum submersion: 5 m
• Maximum fluid temperature: 50°C
• Maximum solid dimensions:
– 10 mm
– 20 mm for the VOX version (Vortex)
• 2 pole asynchronous motor
• Insulation class F
• Protection rating IP68
• Single phase voltage 230V ±10% 50Hz, three-phase voltage 400V ±10%, 50Hz
• Delivery connection: G1¼
MATERIALS
• External jacket, impeller, filter, motor cover, seal disk and motor casing
in AISI 304 stainless steel
• Shaft made of AISI 303 stainless steel
• Mechanical seal made of Ceramics/Carbon/NBR

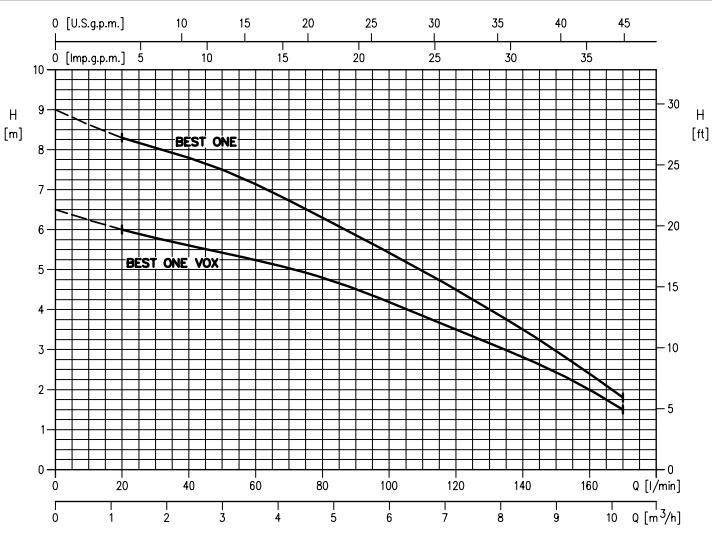

PERFORMANCE CURVES
