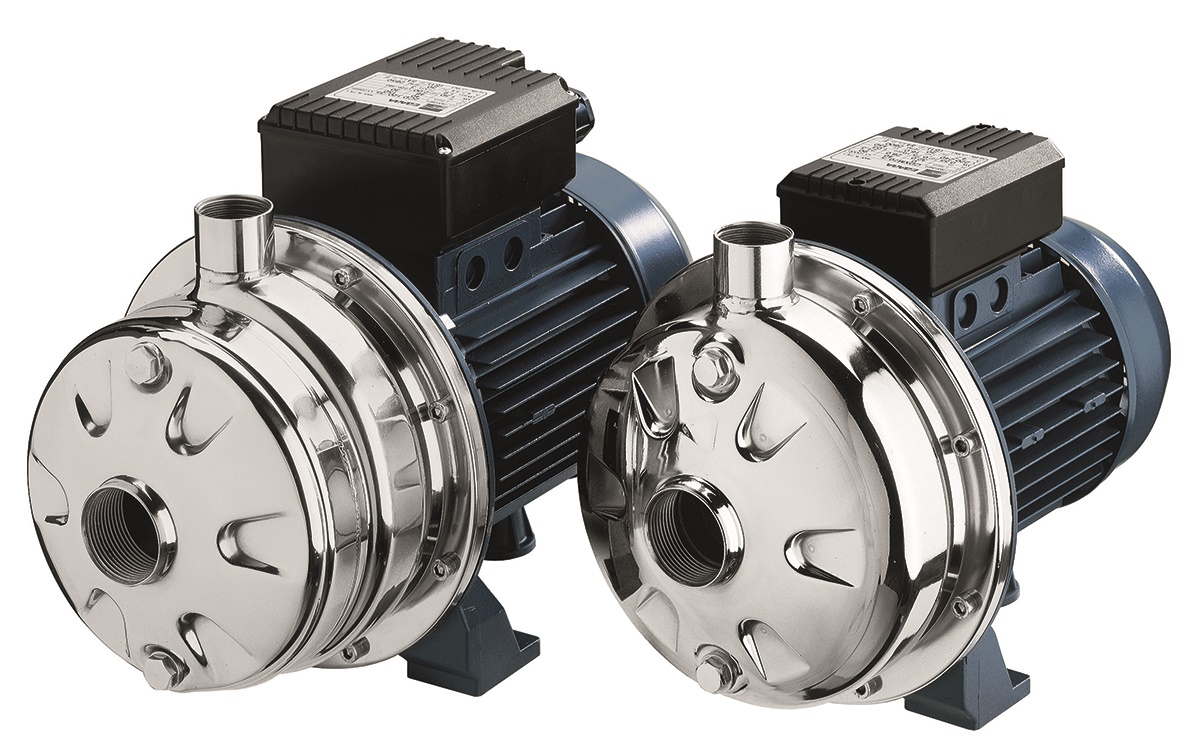

Single impeller centrifugal electric pumps with hydraulic parts in AISI 304 and AISI 316.
APPLICATIONS
• Domestic pressure boosting
• Small-scale garden irrigation
• Washing
• Treating water
• Cooling towers
• Pumping clean water in general
TECHNICAL DETAILS
• Solid hydraulic structure
• Small dimensions
PUMP TECHNICAL DATA
• Maximum working pressure: 8 bar
• Maxim temperature of the liquid:
-5°C ÷ +60°C for CDX(L) and for E, Q1AEGG, VAEGG, U3U3EGG, Q1U3EGG e U3CEGG 70/05-70/07-90/10 versions
-5°C ÷ +90°C for the rest of the CDX(L) range
-5°C ÷ +110°C for the H-HS-HW-HSW version
-5°C ÷ +120°C for E, Q1AEGG, VAEGG, U3U3EGG, Q1U3EGG and U3CEGG versions
• G1½ suction connection for CDX(L) 200, G1¼ for the rest of the range
• G1 discharge connection
• MEI > 0.4
MATERIALS
AISI 304 Version
• Pump casing, impeller, diffuser and casing cover in AISI 304
• Shaft in AISI 303 (part in contact with the liquid)
AISI 316 (L) Version
• Pump casing, impeller, diffuser and casing cover in AISI 316
• Shaft in AISI 316 (part in contact with the liquid)
• Bracket and motor frame in aluminium
• Mechanical seal in:
– Ceramic/Carbon/NBR (standard)
– special versions: see p. 16

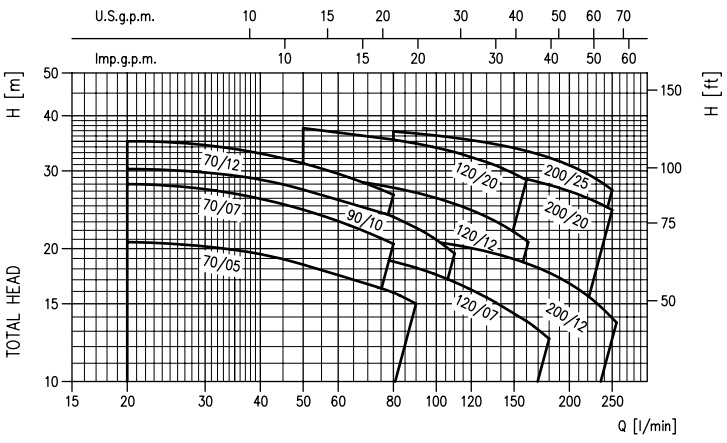

PERFORMANCE RANGE
Capacity: up to 15 m3/h
Head: up to 72m
