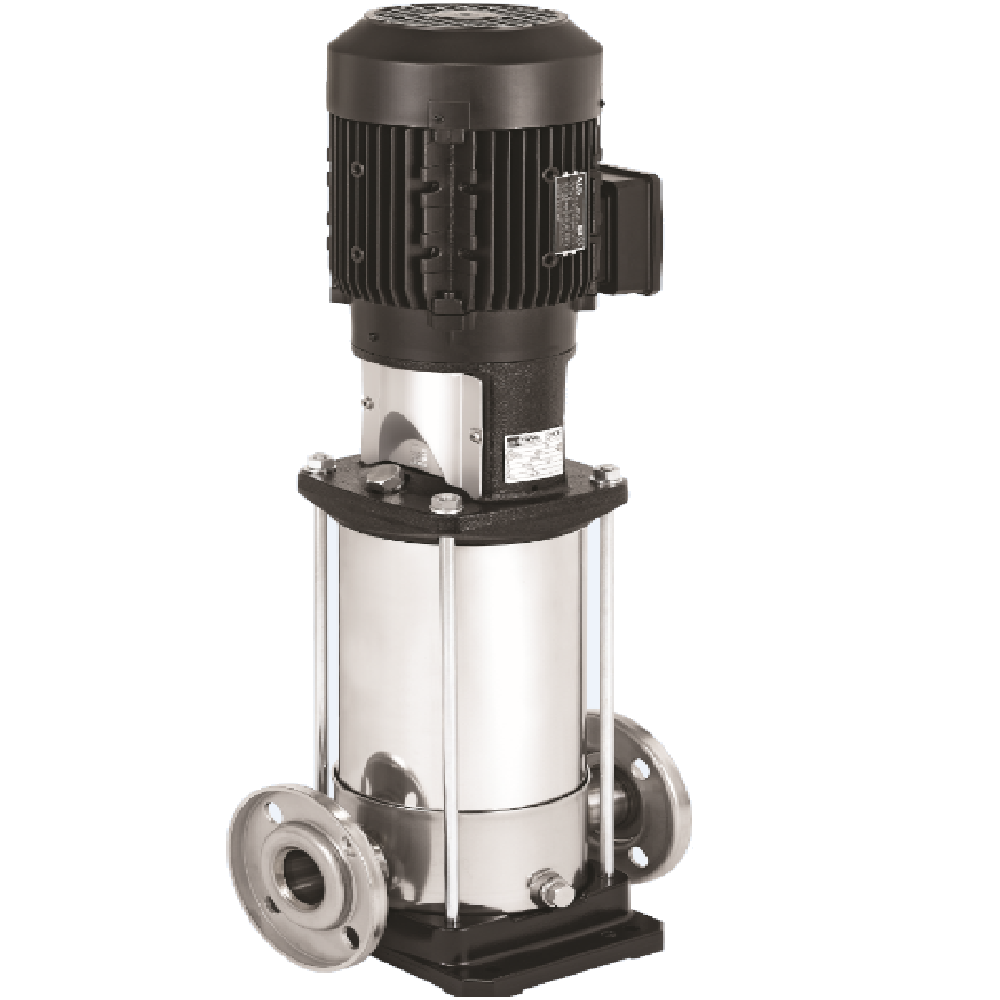

Vertical multistage inline centrifugal electric pumps available in various versions:
- EVMS: Nominal flow rates 1, 3, 5, 10, 15, 20 m3/h
- EVM: Nominal flow rates 32, 45, 64 m3/h
APPLICATIONS
- Industry
e.g. water treatment, boiler feeding, wash and clean, chilling, machine tooling, pressure boosting, food & beverage,pharmaceutical industries, marine applications - Building service
e.g. pressure boosting, sprinkler systems, firefighting systems, district heating, heat exchanger/fan heaters, air conditioning systems, heating systems - Water supply
e.g. water treatment, pressure boosting, irrigation, agriculture
TECHNICAL FEATURES
- Innovative hydraulic solution “Shurricane” for EVMS
- Any motor, anywhere
- Various pipe connections
- Easy maintenance for mechanical seal replacement
- Drinking water use approval with DM174, ACS, KTW for EVMS
PUMP TECHNICAL DATA
- Maximum working pressure: 16, 25 bar for EVMS; 16, 25, 30 bar for EVM
- Temperature of the liquid: from -30°C to +140°C for EVMS; from -15°C to +120°C for EVM
- MEI > 0.7
MATERIALS
- AISI 304 version: Pump bottom casing in AISI304, hydraulic parts in AISI304, Motor bracket in cast iron as EVMS, EVM
- AISI 316 version: Pump bottom casing in AISI316, hydraulic parts in AISI316, Motor bracket in cast iron as EVMSL, EVML
- Cast Iron version: Pump bottom casing in cast iron, hydraulic parts in AISI304, Motor bracket in cast iron as EVMSG, EVMG

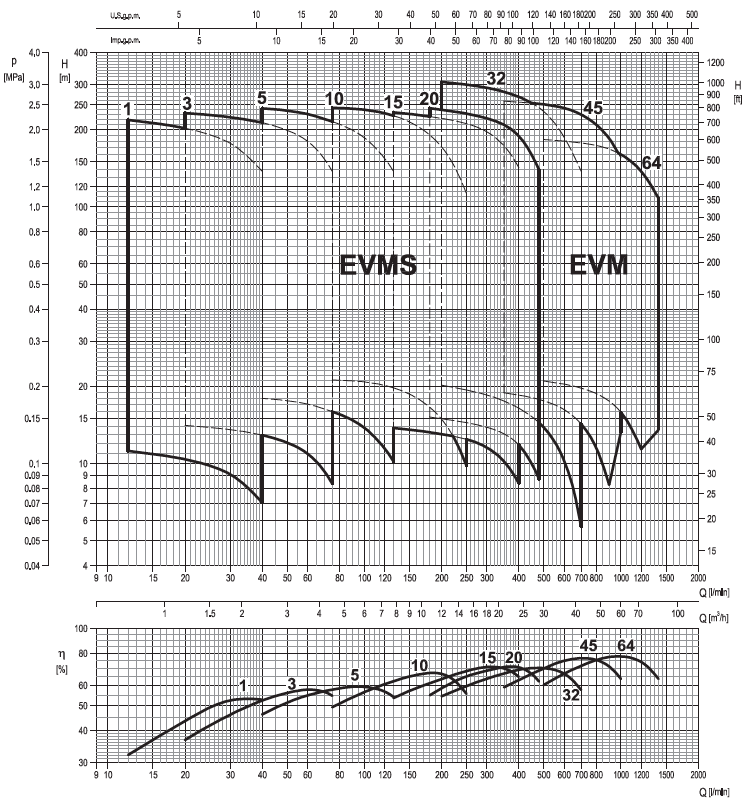

PERFORMANCE RANGE
Capacity: up to 20 m3/h for EVMS; 64 m3/h for EVM
Head: up to 249m for EVMS; 307m for EVM
